Etronix Powerpal Touch 90w AC/DC Performance Battery Charger

DETAILS:

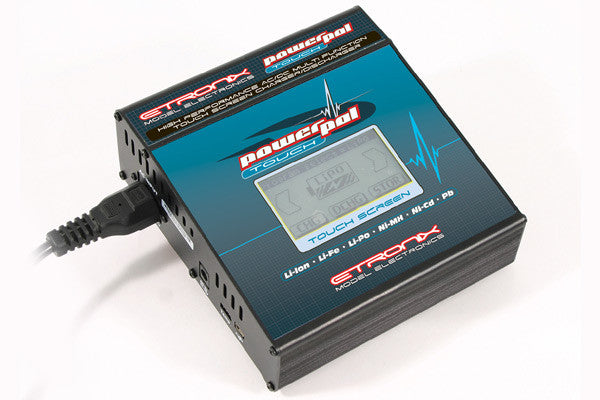

Etronix's PowerPal range of chargers continues to grow with the addition of the new PowerPal Touch. This high performance charger features the latest in touch screen technology for the ultimate ease of use. A full scope of adjustable parameters are available via the touch screen using the supplied stylus for slick and quick operation.

With input from either AC or DC voltage and a charge rate of up to 10A the PowerPal Touch is suitable for most needs and applications. Once the charger is set to your specific battery charging requirements via the simple main screen selection, the screen can display a range of data during charging from battery curve voltage to individual cell charge state.

Sample the next level of charging with the PowerPal Touch.

Etronix PowerPal Touch Features:

• Microprocessor controlled
• Delta-peak sensitivity
• Individual cell balancing
• LiIo,LiPo,LiFe,NiCd and NiMH capable
• Large range of charge current
• Store function
• Time limit function
• Input voltage monitoring
• Battery cycling
• Automatically charging function

Specifications:

• AC Input voltage AC 100V -240V
• DC Input voltage DC 11.0V-18.0V
• Charge current 0.1A-10.0A
• Discharge current 0.1A-5.0A
• Charge power max.90W
• Discharge power max.20W
• Balance current max.350mA
• Balance tolerance ±0.01V
• NiCd/NiMH battery cell count 1-16cells
• Lithium battery types Li-Po, Li-ion,Li-Fe
• Lithium battery cell count 1-6series
• Pb battery voltage 2V-20V
• Digital Power 3V-24V
• Operation system Graphical display
• Weight 710g
• Dimensions 142x155x55mm
